基于FPGA的AD7705输入设计VHDL代码Quartus仿真

名称：基于FPGA的AD7705输入设计VHDL代码Quartus仿真

软件：Quartus

语言：VHDL

代码功能：

AD7705输入,(4000-输入)/7(仿真输出=学号后3位),8位∪ART发送输出。

每位交一个pdf文档,联系应用井至少比较一种不同方案进行方案分析。

FPGA代码Verilog/VHDL代码资源下载：www.hdlcode.com

演示视频：

设计文档：

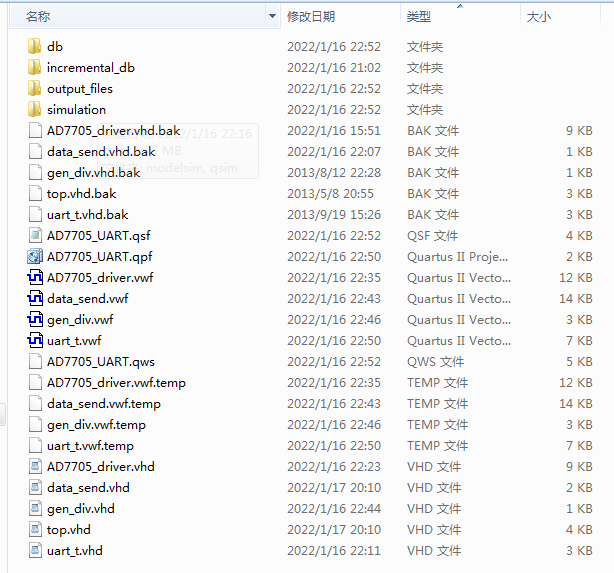

1. 工程文件

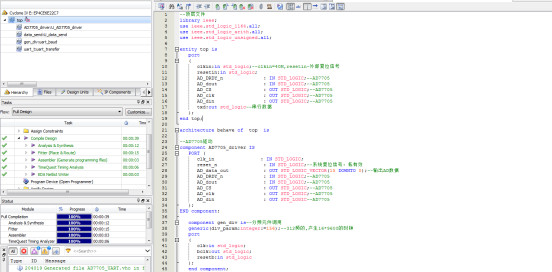

2. 程序文件

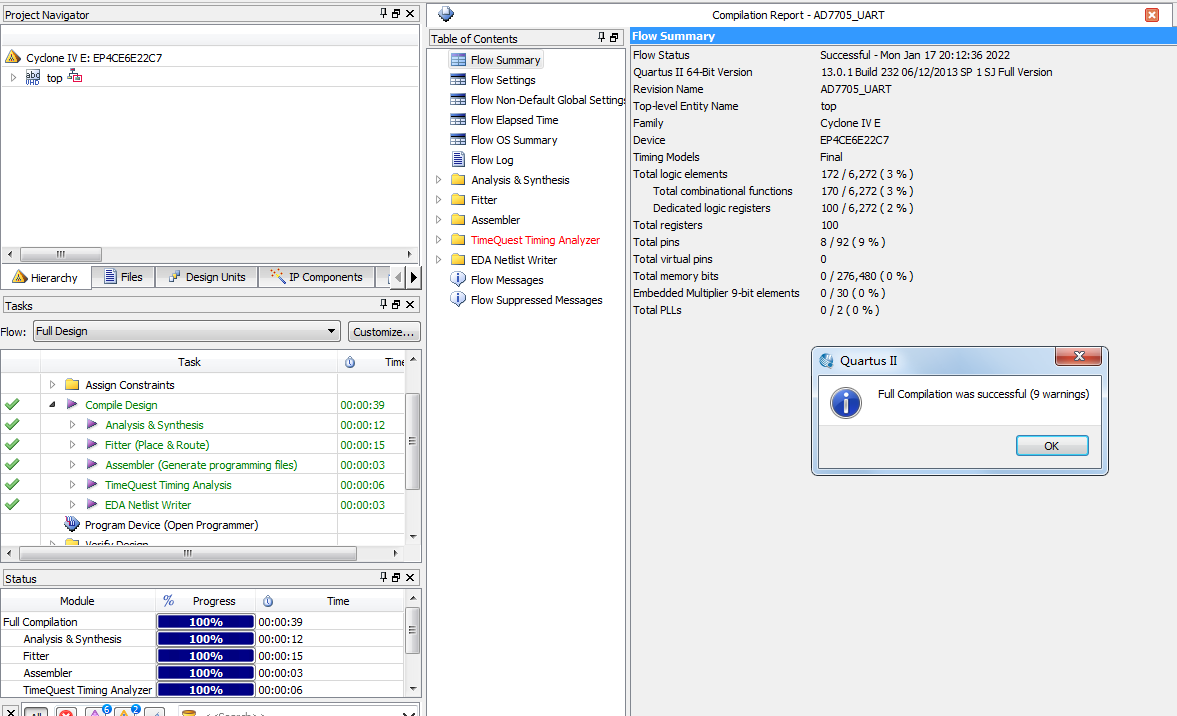

3. 程序编译

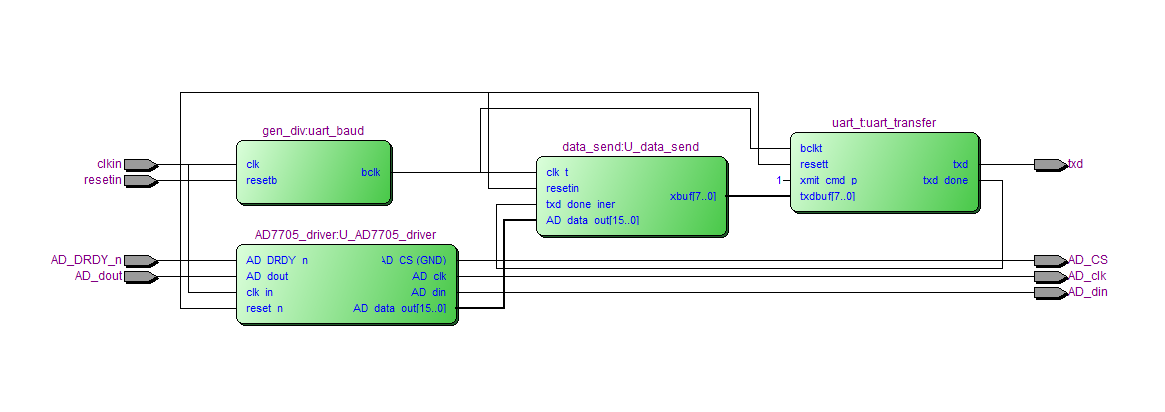

4. RTL图

5. 仿真图

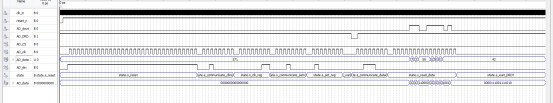

AD7705模块仿真

--042=(4000-x)/7

--x=3706

--==0000111001111010

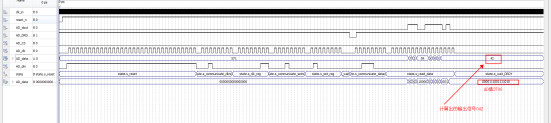

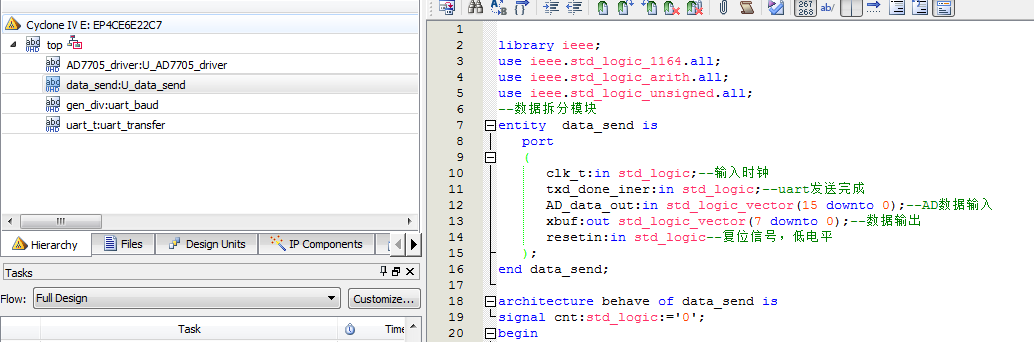

数据拆分模块仿真

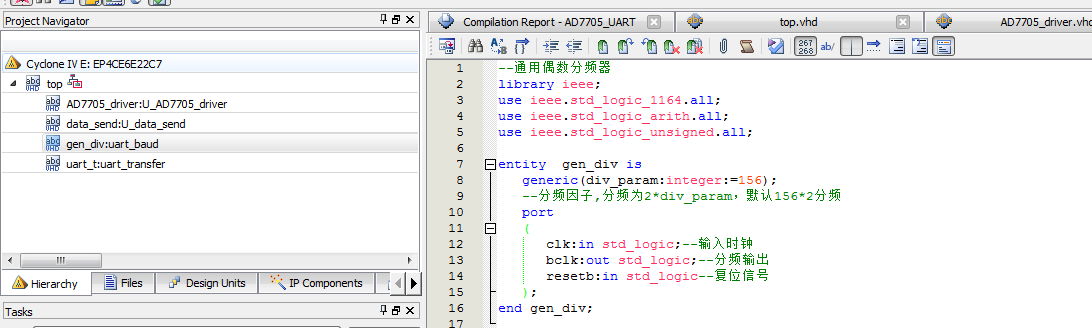

分频模块

UART发送模块

部分代码展示:

-042=(4000-x)/7
--x=3706
--==0000111001111010

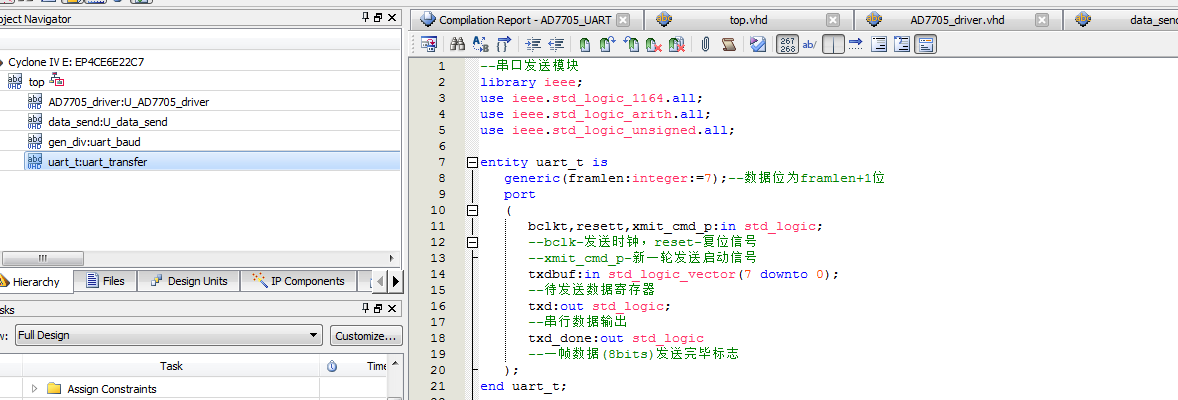

LIBRARY?ieee;
???USE?ieee.std_logic_1164.all;
???USE?ieee.std_logic_unsigned.all;
USE?ieee.std_logic_arith.all;

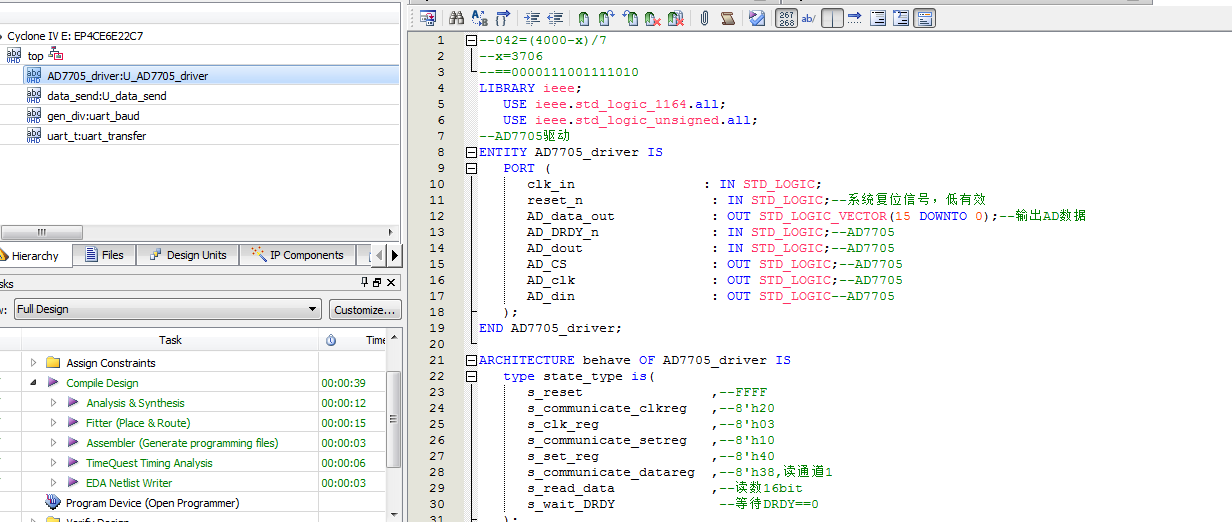

--AD7705驱动
