WiFi CLI Azure Wave AW-AM510 FRDM MCXN947

这是在 frdm-mcxn947 的串口终端上运行 wifi 的 CLI 示例，此示例包含许多 wifi 测试选项，具体包括：

-help -wlan-version -wlan-mac -wlan-scan -wlan-scan-opt ssid <ssid> bssid ... -wlan-add <profile_name> ssid <ssid> bssid... -wlan-remove <profile_name> -wlan-list -wlan-connect <profile_name> -wlan-start-network <profile_name> -wlan-stop-network -wlan-disconnect -wlan-stat -wlan-info -wlan-address -wlan-get-uap-channel -wlan-get-uap-sta-list -ping [-s <packet_size>] [-c <packet_count>] [-W <timeout in sec>]<ip_address> -iperf [-s|-c <host>|-a|-h] [options] -dhcp-stat

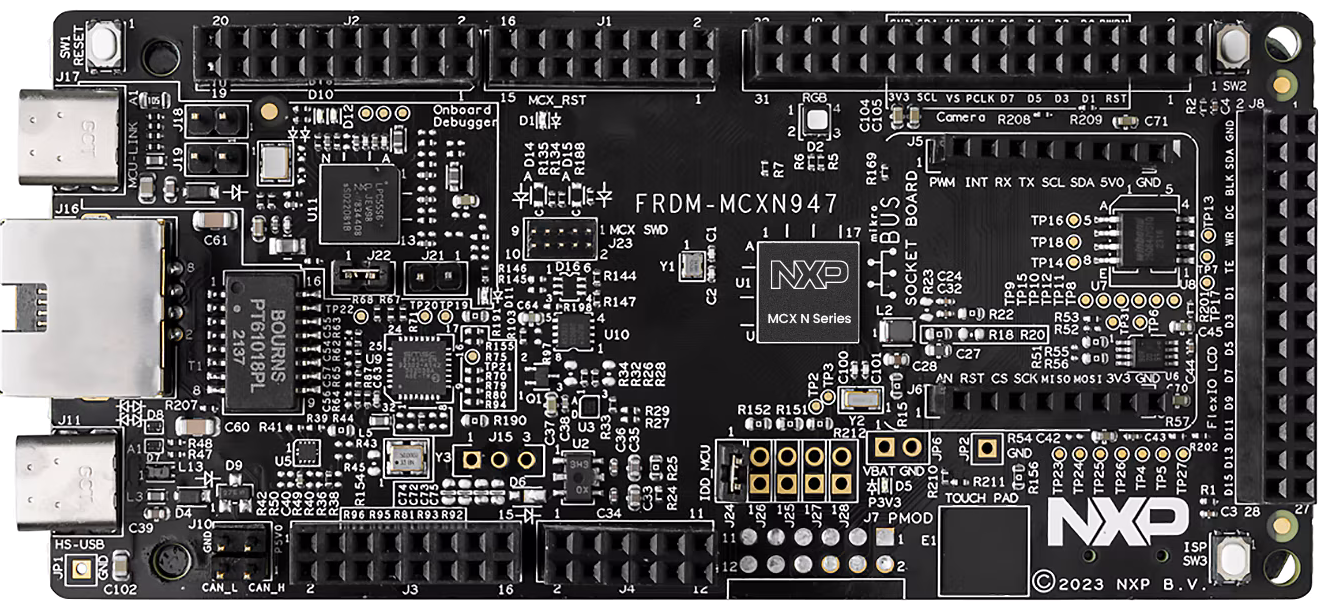

主板：FRDM-MCXN947

类别：无线连接、RTOS

外设：SDIO、UART

工具链：MCUXpresso IDE、VS Code

1.软件

2.硬件

3. 设置

3.1 准备演示

使用 USB C 型线缆连接 PC 主机和开发板上的 CMSIS DAP USB 端口
使用以下设置打开串行终端：
- 115200波特率
- 8个数据位
- 无奇偶校验
- 一个停止位
- 无流量控制

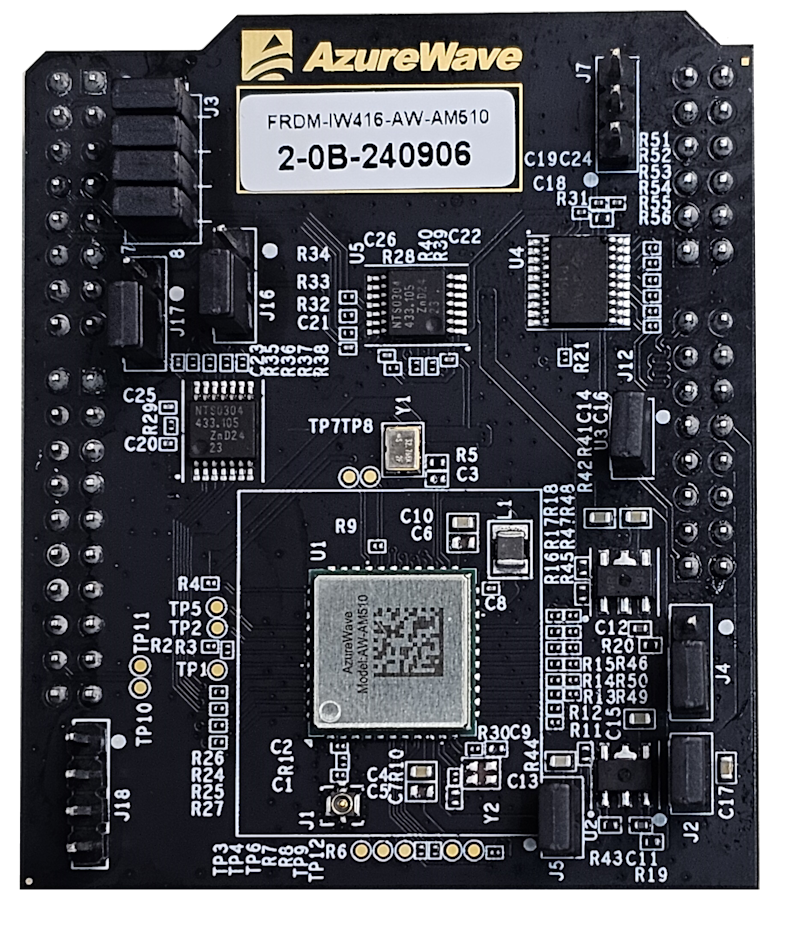

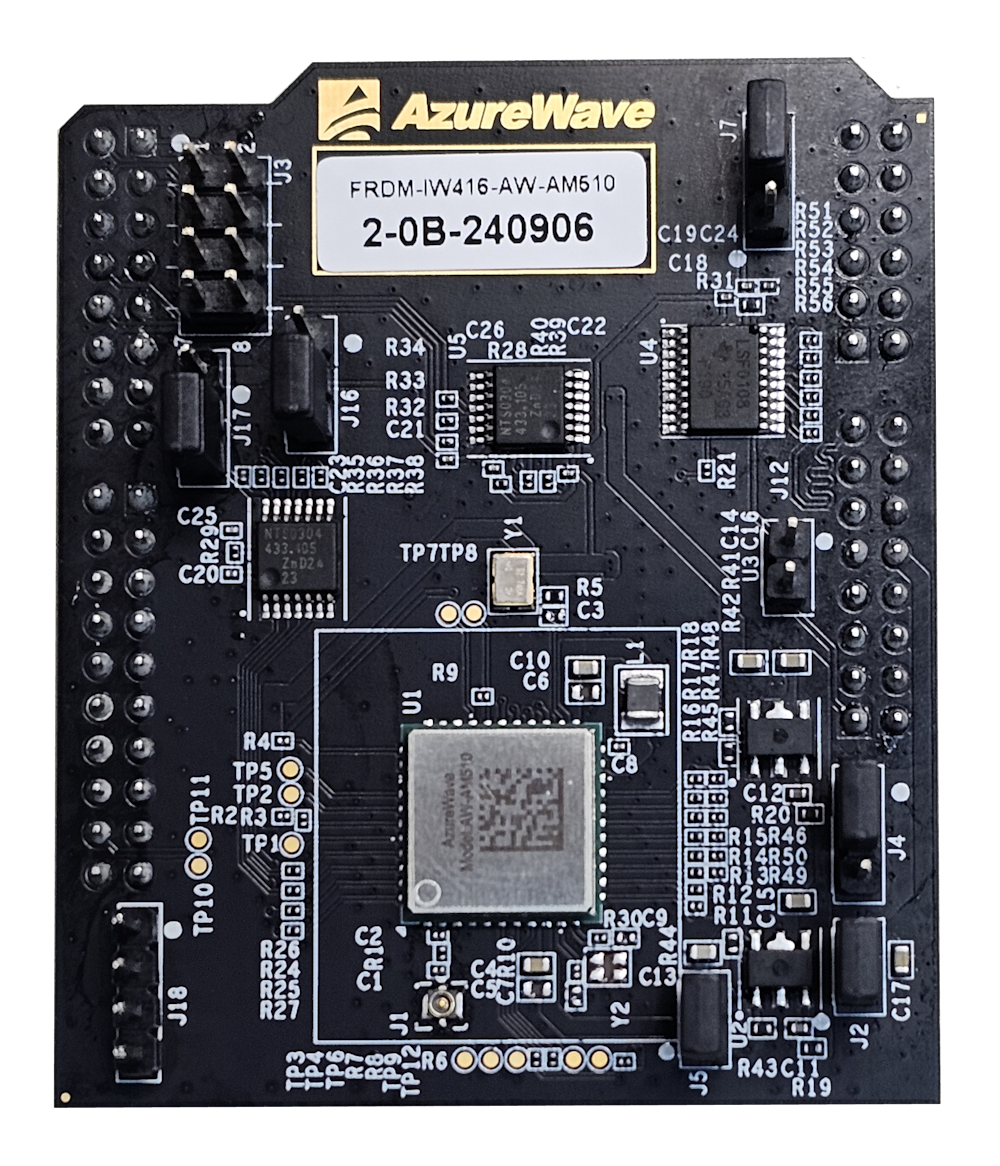

设置AW-AM510模块的跳线。

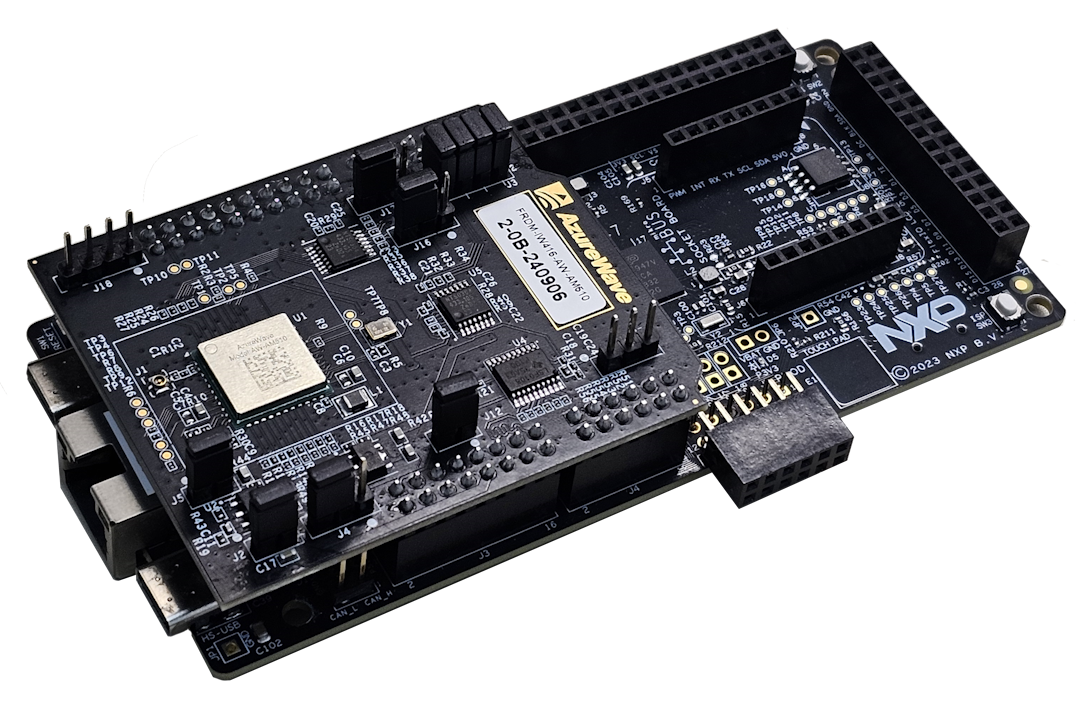

连接Wi-Fi模块。
将程序下载到目标板。
按下开发板上的重置按钮或在 IDE 中启动调试器即可开始运行演示。

4.结果

在应用程序主函数中添加 CLI 初始化 API。
一旦 WLAN 连接管理器正确初始化，就添加 WLAN CLI 初始化 API。
当演示启动时，终端上会出现一条欢迎消息，按回车键进入命令提示符：

```

wifi cli demo
========================================
Initialize CLI
========================================
CLI Build: Jan 23 2025 [08:07:52]
Copyright 2024 NXP
MCU Board: MCX-N9XX-EVK
========================================
Initialize WLAN Driver
========================================
STA MAC Address: 1C:CE:51:96:D5:FD
app_cb: WLAN initialized
========================================
WLAN CLIs are initialized
========================================
ENHANCED WLAN CLIs are initialized
========================================
CLIs Available:
========================================
```

键入 help 列出所有可用的 CLI 命令。

help clear wlan-version wlan-mac wlan-thread-info wlan-net-stats wlan-set-mac <MAC_Address> wlan-scan wlan-scan-opt ssid <ssid> bssid ... wlan-add <profile_name> ssid <ssid> bssid... wlan-remove <profile_name> wlan-list wlan-connect <profile_name> wlan-connect-opt <profile_name> ... wlan-reassociate wlan-start-network <profile_name> wlan-stop-network wlan-disconnect wlan-stat wlan-info wlan-address wlan-uap-disconnect-sta <mac address> wlan-get-uap-channel wlan-get-uap-sta-list wlan-ieee-ps <0/1> wlan-set-ps-cfg <null_pkt_interval> wlan-deep-sleep-ps <0/1> wlan-get-beacon-interval wlan-wnm-ps <0/1> <sleep_interval> wlan-set-max-clients-count <max clients count> wlan-rts <sta/uap> <rts threshold> wlan-host-11k-enable <0/1> wlan-host-11k-neighbor-req [ssid <ssid>] wlan-host-11v-bss-trans-query <0..16> wlan-roaming <0/1> <rssi_threshold> wlan-multi-mef <ping/arp/multicast/del> [<action>] wlan-send-hostcmd wlan-set-uap-bandwidth <1/2> 1:20 MHz 2:40MHz wlan-set-uap-hidden-ssid <0/1/2> wlan-eu-crypto-rc4 <EncDec> wlan-eu-crypto-aes-wrap <EncDec> wlan-eu-crypto-aes-ecb <EncDec> wlan-eu-crypto-ccmp-128 <EncDec> wlan-ft-roam <bssid> <channel> wlan-set-antcfg <ant mode> [evaluate_time] wlan-get-antcfg wlan-scan-channel-gap <channel_gap_value> wlan-reset wlan-set-regioncode <region-code> wlan-get-regioncode wlan-11d-enable <sta/uap> <0/1> wlan-rssi-low-threshold <threshold_value> wlan-get-signal wlan-set-bandcfg wlan-get-bandcfg wlan-set-su <0/1> wlan-set-multiple-dtim <value> wlan-cloud-keep-alive <start/stop/reset> wlan_tcp_client dst_ip <dst_ip> src_port <src_port> dst_port <dst_port> wlan-set-country <country_code_str> wlan-set-country-ie-ignore <0/1> wlan-get-txpwrlimit <subband> wlan-set-txpwrlimit wlan-set-chanlist-and-txpwrlimit wlan-set-chanlist wlan-get-chanlist wlan-set-txratecfg <sta/uap> <format> <index> <autoTx_set> wlan-get-txratecfg <sta/uap> wlan-get-data-rate <sta/uap> wlan-get-pmfcfg wlan-uap-get-pmfcfg wlan-set-ed-mac-mode <interface> <ed_ctrl_2g> <ed_offset_2g> <ed_ctrl_5g> <ed_offset_5g> wlan-get-ed-mac-mode <interface> ping [-s <packet_size>] [-c <packet_count>] [-W <timeout in sec>] <ipv4/ipv6 address> iperf [-s|-c <host>|-a|-h] [options] dhcp-stat
