通用可调UART串口通信协议VHDL代码Quartus仿真

名称：通用可调UART串口通信协议VHDL代码Quartus仿真

软件：Quartus

语言：VHDL

代码功能：

通用可调UART串口通信协议

1、可以调整波特率；

2、可以调整数据位长度；

3、可以调整停止位长度；

4、可以调整校验位长度；

5、可以设置奇偶校验；

6、支持串口发送和接收；

7、具有VHDL和Verilog两个独立工程文件。

FPGA代码Verilog/VHDL代码资源下载：www.hdlcode.com

演示视频：

设计文档：

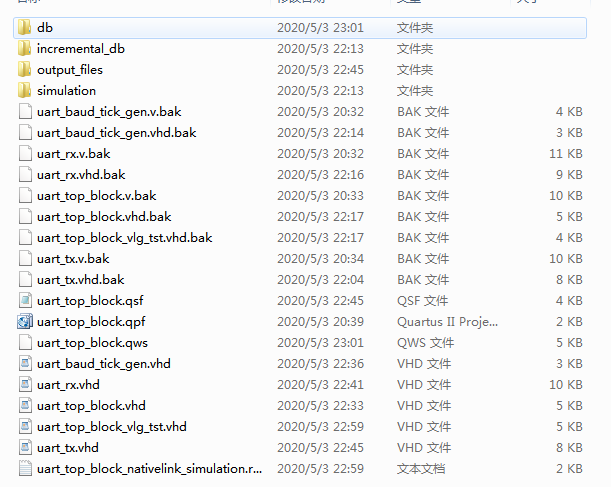

1. 工程文件(以VHDL工程为例)

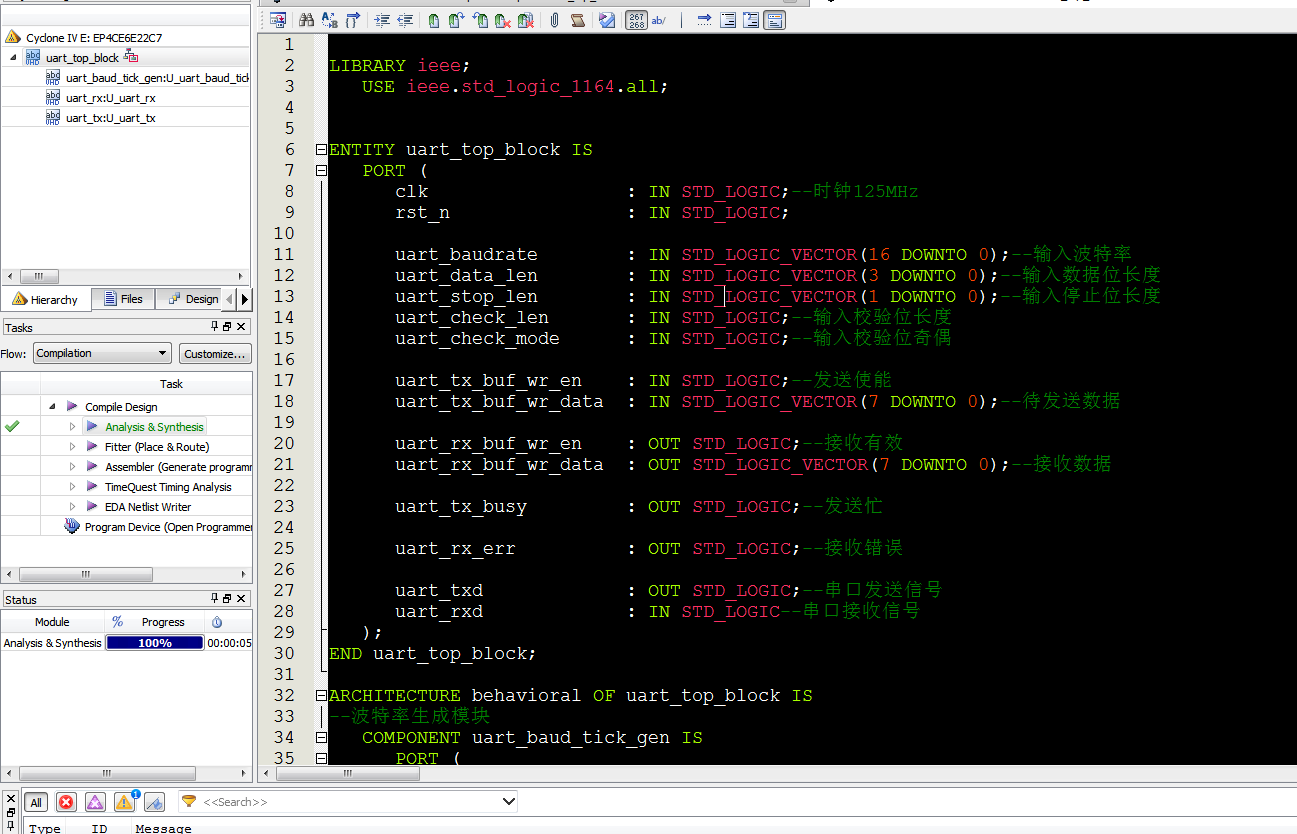

2. 程序文件

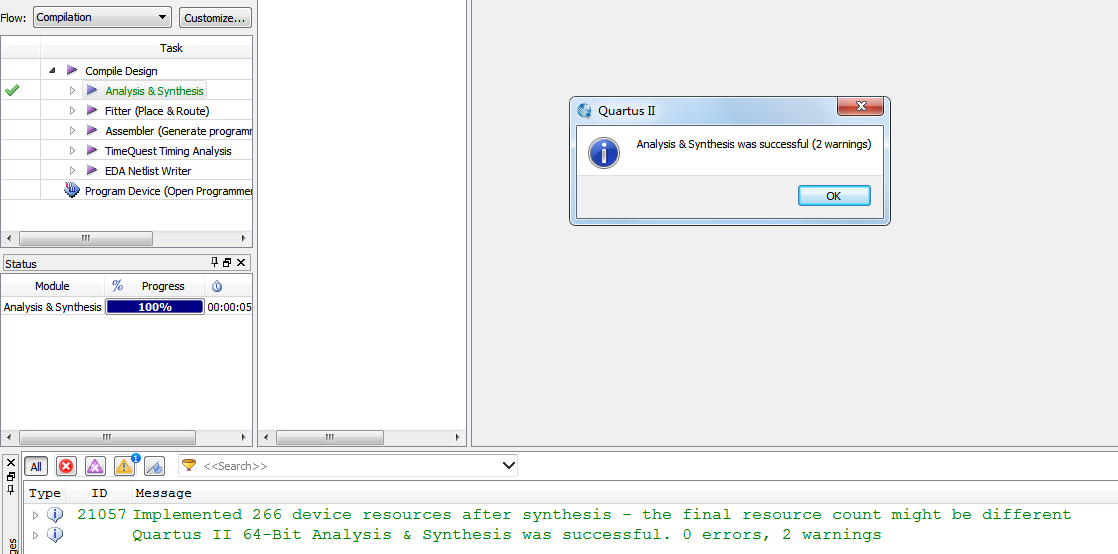

3. 程序编译

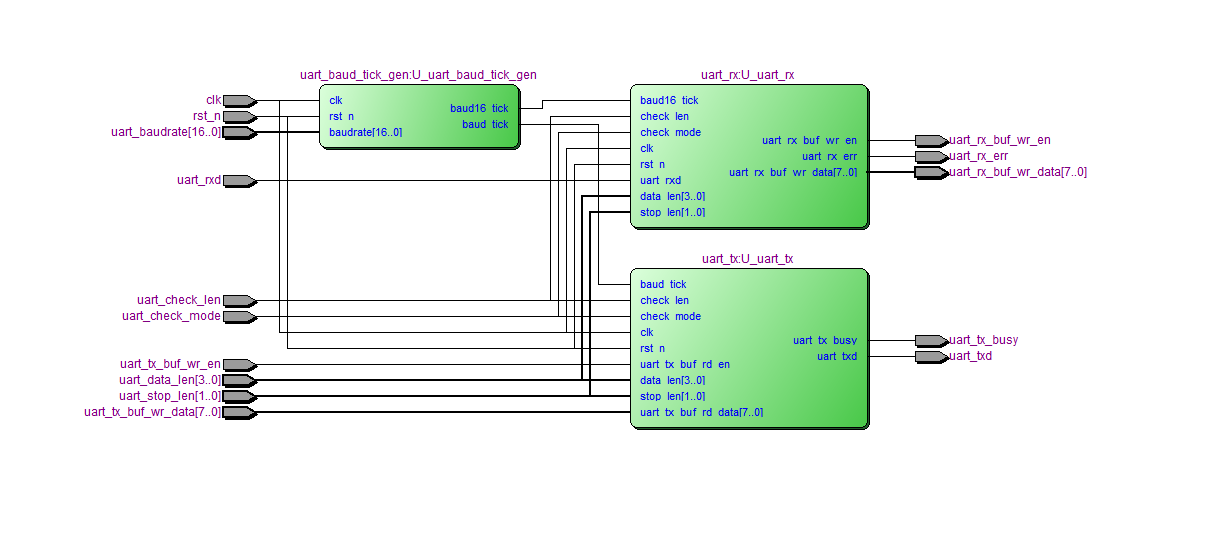

4. RTL图

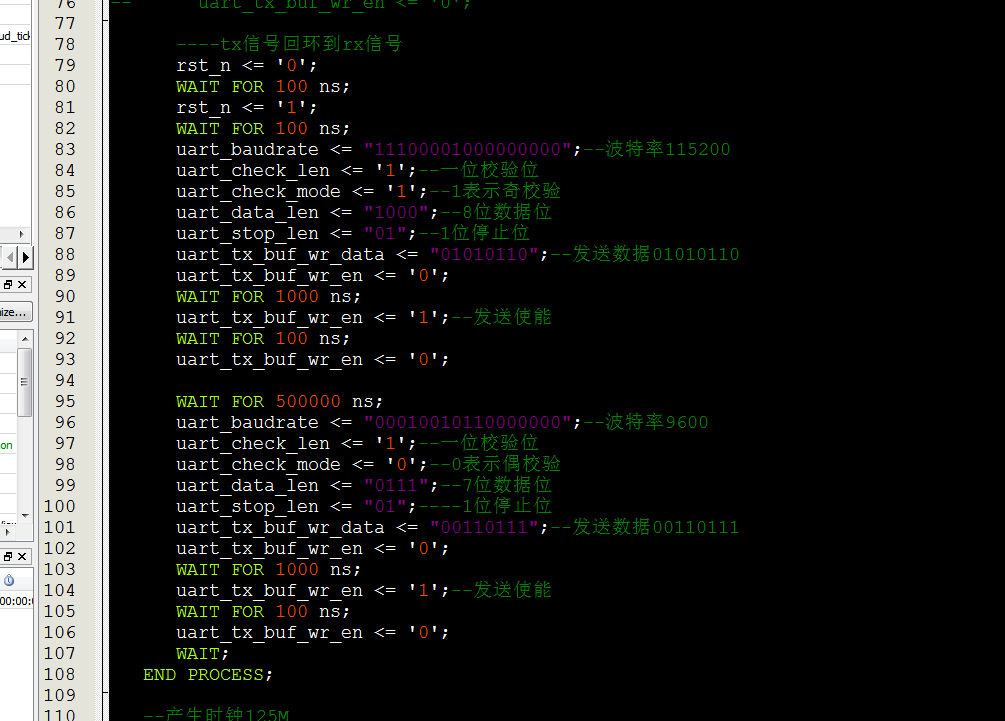

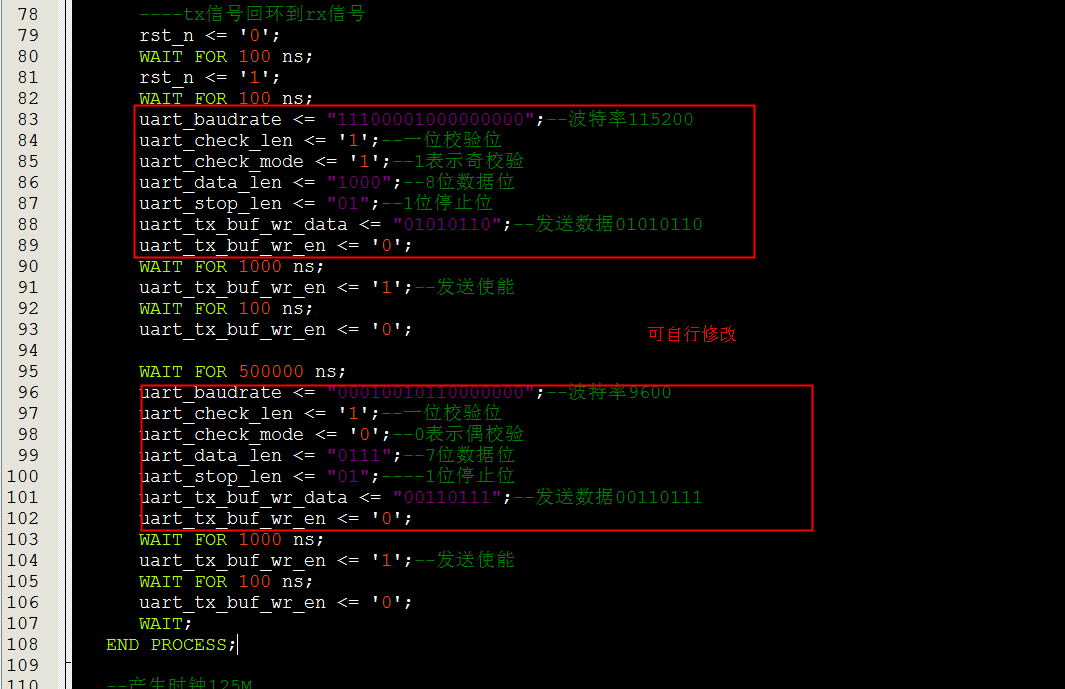

5. Testbench

6. 仿真图

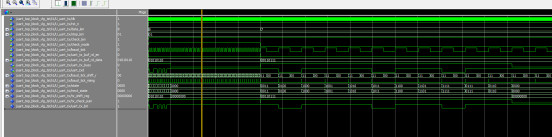

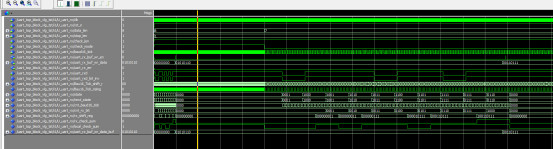

整体仿真

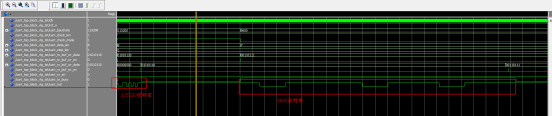

波特率产生模块

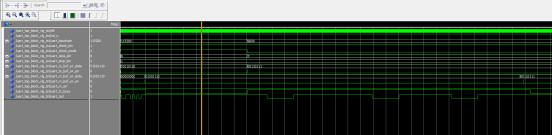

发送模块

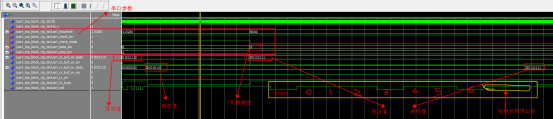

接收模块

部分代码展示:

LIBRARY?ieee;
???USE?ieee.std_logic_1164.all;
???USE?ieee.std_logic_unsigned.all;
???USE?ieee.std_logic_arith.all;
ENTITY?uart_rx?IS
???PORT?(
??????clk??????????????????:?IN?STD_LOGIC;
??????rst_n????????????????:?IN?STD_LOGIC;
??????
??????data_len?????????????:?IN?STD_LOGIC_VECTOR(3?DOWNTO?0);--数据长度--?5~8
??????stop_len?????????????:?IN?STD_LOGIC_VECTOR(1?DOWNTO?0);--停止位长度--?1~2
??????check_len????????????:?IN?STD_LOGIC;--校验位长度--?0~1
??????check_mode???????????:?IN?STD_LOGIC;--奇偶--?0~1
??????
??????baud16_tick??????????:?IN?STD_LOGIC;
??????
??????uart_rx_buf_wr_en????:?OUT?STD_LOGIC;--接收使能
??????uart_rx_buf_wr_data??:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0);--接收数据
??????
??????uart_rx_err??????????:?OUT?STD_LOGIC;
??????
??????uart_rxd?????????????:?IN?STD_LOGIC
???);
END?uart_rx;
ARCHITECTURE?trans?OF?uart_rx?IS
???
--???SIGNAL?uart_rxd_sync_r???????????:?STD_LOGIC_VECTOR(2?DOWNTO?0);
???
???SIGNAL?uart_rxd_bit_inv??????????:?STD_LOGIC;
???
???SIGNAL?Bau16_Tick_shift_r????????:?STD_LOGIC_VECTOR(1?DOWNTO?0);
???SIGNAL?Bau16_Tick_rising?????????:?STD_LOGIC;
???
???SIGNAL?state?????????????????????:?STD_LOGIC_VECTOR(3?DOWNTO?0);
???SIGNAL?next_state????????????????:?STD_LOGIC_VECTOR(3?DOWNTO?0);
???SIGNAL?cnt_baud16_tick???????????:?STD_LOGIC_VECTOR(3?DOWNTO?0);
???SIGNAL?cnt_rx_bit????????????????:?STD_LOGIC_VECTOR(3?DOWNTO?0);
???
???SIGNAL?rx_shift_reg??????????????:?STD_LOGIC_VECTOR(8?DOWNTO?0);
???
???SIGNAL?rx_check_sum??????????????:?STD_LOGIC;
???SIGNAL?local_check_sum???????????:?STD_LOGIC;
???SIGNAL?uart_rx_buf_wr_data_buf?:?STD_LOGIC_VECTOR(7?DOWNTO?0);
BEGIN
???--?Drive?referenced?outputs
???uart_rx_buf_wr_data?<=?uart_rx_buf_wr_data_buf;--输出接收数据
--???PROCESS?(clk)
--???BEGIN
--??????IF?(clk'EVENT?AND?clk?=?'1')?THEN
--?????????uart_rxd_sync_r?<=?(uart_rxd_sync_r(1?DOWNTO?0)?&?uart_rxd);--移位
--??????END?IF;
--???END?PROCESS;
???
???PROCESS?(clk)
???BEGIN
??????IF?(clk'EVENT?AND?clk?=?'1')?THEN
?????????uart_rxd_bit_inv?<=?uart_rxd;--同步到时钟下
??????END?IF;
???END?PROCESS;
???
???PROCESS?(clk)
???BEGIN
??????IF?(clk'EVENT?AND?clk?=?'1')?THEN
?????????Bau16_Tick_shift_r?<=?(Bau16_Tick_shift_r(0)?&?baud16_tick);
??????END?IF;
???END?PROCESS;
???PROCESS?(clk)
???BEGIN
??????IF?(clk'EVENT?AND?clk?=?'1')?THEN
?????????if(Bau16_Tick_shift_r?=?"01")then--检测Bau16_Tick_shift_r上升沿
Bau16_Tick_rising<='1';--上升沿
else
Bau16_Tick_rising<='0';
end?if;
??????END?IF;
???END?PROCESS;
???
--状态机
???PROCESS?(clk,?rst_n)
???BEGIN
??????IF?((NOT(rst_n))?=?'1')?THEN
?????????state?<=?"0000";
??????ELSIF?(clk'EVENT?AND?clk?=?'1')?THEN
?????????state?<=?next_state;
??????END?IF;
???END?PROCESS;
???
???PROCESS?(state,?uart_rxd_bit_inv,?Bau16_Tick_rising,?cnt_baud16_tick,?data_len,?check_len)
???BEGIN
??????CASE?state?IS
?????????WHEN?"0000"?=>--?IDLE
????????????IF?((NOT(uart_rxd_bit_inv))?=?'1')?THEN
???????????????next_state?<=?"0001";
????????????ELSE
???????????????next_state?<=?state;
????????????END?IF;
?????????WHEN?"0001"?=>--?Start
????????????IF?(Bau16_Tick_rising?=?'1'?AND?cnt_baud16_tick?=?"1110")?THEN
???????????????next_state?<=?"1000";
????????????ELSE
???????????????next_state?<=?state;
????????????END?IF;
?????????WHEN?"1000"?=>?--?Bit?0
????????????IF?(Bau16_Tick_rising?=?'1'?AND?cnt_baud16_tick?=?"1110")?THEN
???????????????next_state?<=?"1001";
????????????ELSE
???????????????next_state?<=?state;
????????????END?IF;
?????????WHEN?"1001"?=>--?Bit?1
????????????IF?(Bau16_Tick_rising?=?'1'?AND?cnt_baud16_tick?=?"1110")?THEN
???????????????next_state?<=?"1010";
????????????ELSE
???????????????next_state?<=?state;
????????????END?IF;
?????????WHEN?"1010"?=>--?Bit?2
????????????IF?(Bau16_Tick_rising?=?'1'?AND?cnt_baud16_tick?=?"1110")?THEN
???????????????next_state?<=?"1011";
????????????ELSE
???????????????next_state?<=?state;
????????????END?IF;
?????????WHEN?"1011"?=>--?Bit?3
????????????IF?(Bau16_Tick_rising?=?'1'?AND?cnt_baud16_tick?=?"1110")?THEN
???????????????IF?(data_len?>?"0101")?THEN
??????????????????next_state?<=?"1100";
???????????????ELSE
??????????????????next_state?<=?"1111";
???????????????END?IF;
????????????ELSE
???????????????next_state?<=?state;
????????????END?IF;
?????????WHEN?"1100"?=>--?Bit?4
????????????IF?(Bau16_Tick_rising?=?'1'?AND?cnt_baud16_tick?=?"1110")?THEN
???????????????IF?(data_len?>?"0110")?THEN
??????????????????next_state?<=?"1101";
???????????????ELSE
??????????????????next_state?<=?"1111";
???????????????END?IF;
????????????ELSE
???????????????next_state?<=?state;
????????????END?IF;
?????????WHEN?"1101"?=>--?Bit?5
????????????IF?(Bau16_Tick_rising?=?'1'?AND?cnt_baud16_tick?=?"1110")?THEN
???????????????IF?(data_len?>?"0111")?THEN
??????????????????next_state?<=?"1110";
???????????????ELSE
??????????????????next_state?<=?"1111";
???????????????END?IF;
????????????ELSE
???????????????next_state?<=?state;
????????????END?IF;
?????????WHEN?"1110"?=>--?Bit?6
????????????IF?(Bau16_Tick_rising?=?'1'?AND?cnt_baud16_tick?=?"1110")?THEN
???????????????next_state?<=?"1111";
????????????ELSE
???????????????next_state?<=?state;
????????????END?IF;
?????????WHEN?"1111"?=>--?Bit?Last
????????????IF?(Bau16_Tick_rising?=?'1'?AND?cnt_baud16_tick?=?"1110")?THEN
???????????????IF?(check_len?>?'0')?THEN
??????????????????next_state?<=?"0111";
???????????????ELSE
??????????????????next_state?<=?"0110";
???????????????END?IF;
????????????ELSE
???????????????next_state?<=?state;
????????????END?IF;
?????????WHEN?"0111"?=>--?Check
????????????IF?(Bau16_Tick_rising?=?'1'?AND?cnt_baud16_tick?=?"1110")?THEN
???????????????next_state?<=?"0110";
????????????ELSE
???????????????next_state?<=?state;
????????????END?IF;
?????????WHEN?"0110"?=>--?Stop?1
????????????IF?(Bau16_Tick_rising?=?'1'?AND?cnt_baud16_tick?=?"1110")?THEN
???????????????next_state?<=?"0000";
????????????ELSE
???????????????next_state?<=?state;
????????????END?IF;
?????????WHEN?OTHERS?=>
????????????next_state?<=?"0000";
??????END?CASE;
???END?PROCESS;
