足球竞赛计时钟设计VHDL代码Quartus仿真

名称：足球竞赛计时钟设计VHDL代码Quartus仿真

软件：Quartus

语言：VHDL

代码功能：

足球竞赛计时钟设计

任务及要求：

CPLD为复杂可编程逻辑器件,通过EDA技术对其进行编程,可将一个较复杂的数字系统集成于一个芯片中,制成专用集成电路芯片,并可随时在系统修改其逻辑功能。并最终完成电路的编程调试。

具体要求如下:

1.用两位BCD码显示足球比分牌；

2.通过加分输入可以给A队或B队加分；

3.设计对调功能,A队和B队分数互换,意味着中场交换场地；

4.显示比赛倒计时功能。

FPGA代码Verilog/VHDL代码资源下载：www.hdlcode.com

演示视频：

设计文档：

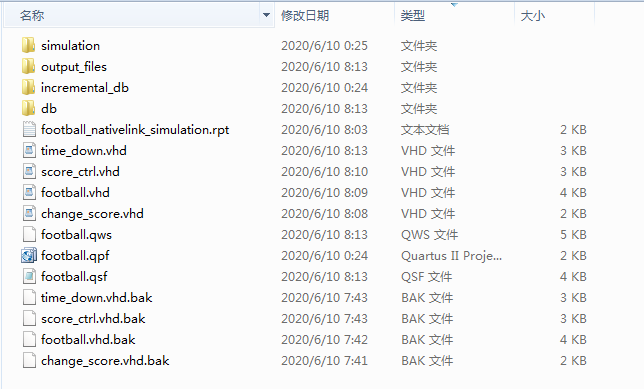

1. 工程文件

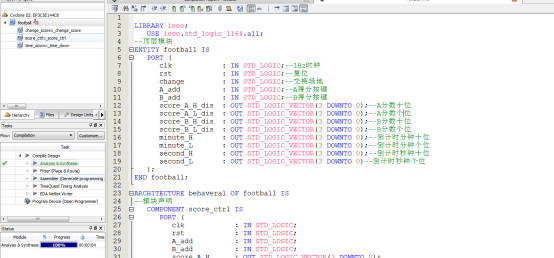

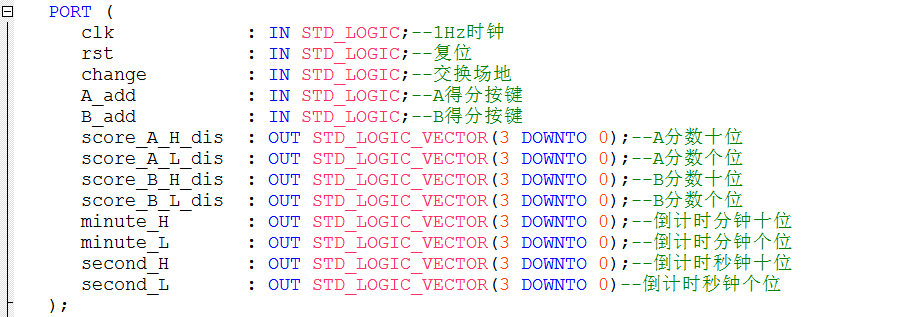

2. 程序文件

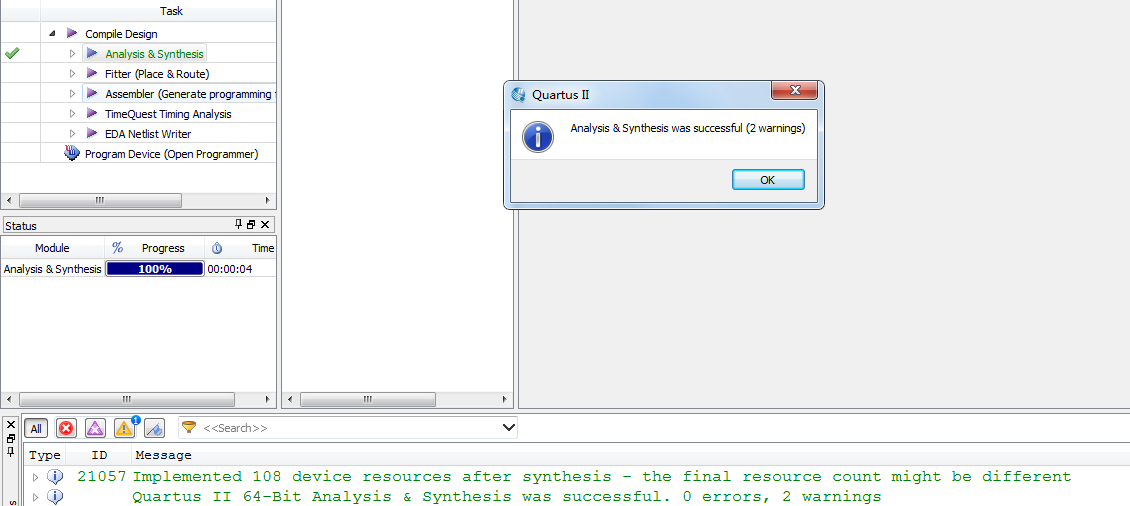

3. 程序编译

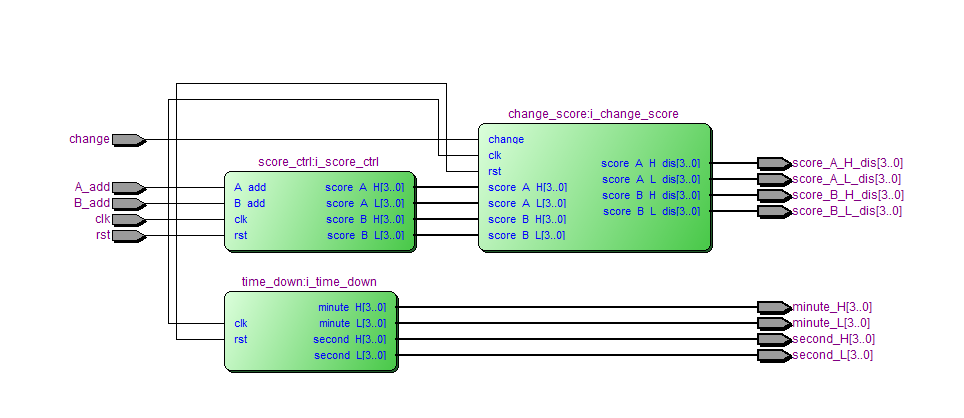

4. RTL图

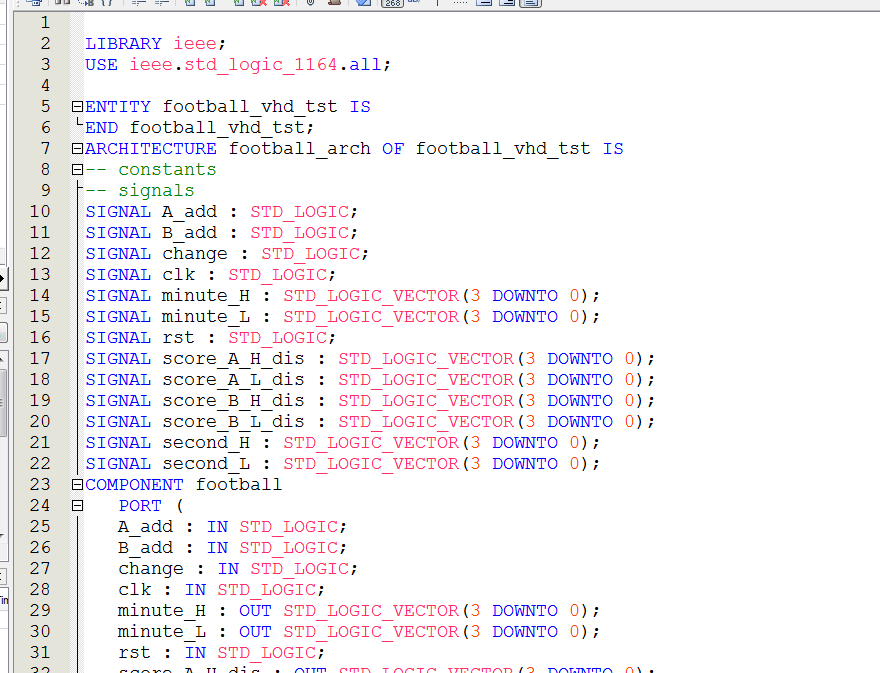

5. Testbench

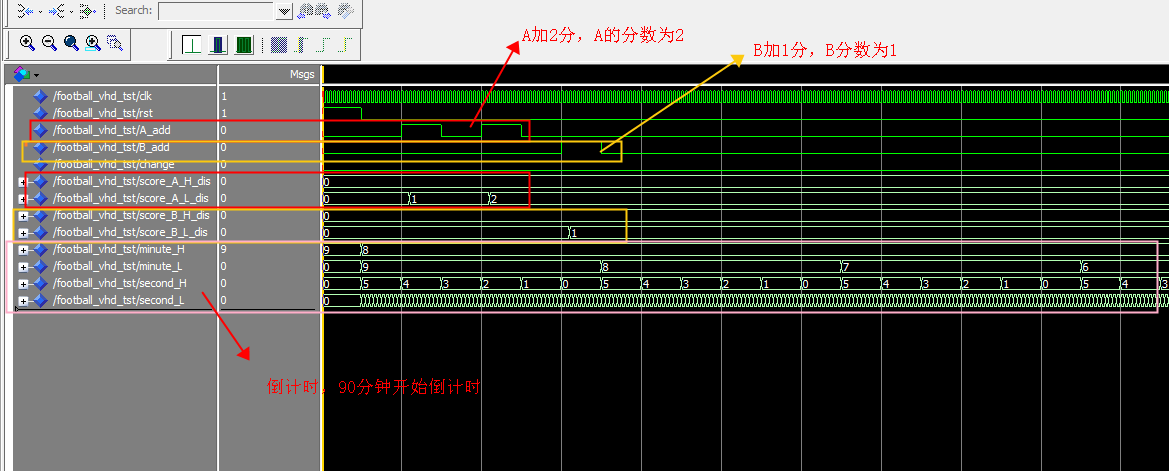

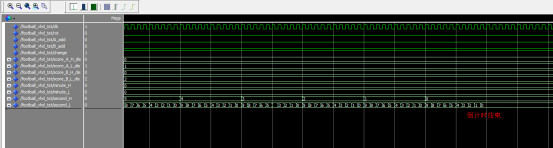

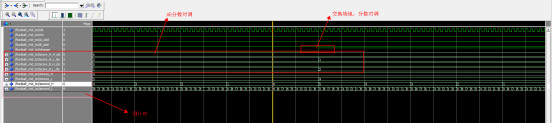

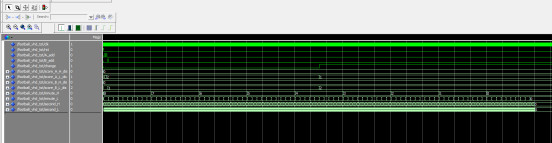

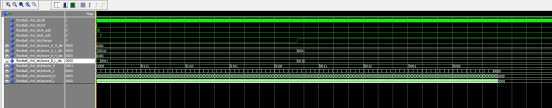

6. 仿真图

部分代码展示:

LIBRARY?ieee;
???USE?ieee.std_logic_1164.all;
--分数对调模块
ENTITY?change_score?IS
???PORT?(
??????clk????????????:?IN?STD_LOGIC;
??????rst????????????:?IN?STD_LOGIC;
??????change?????????:?IN?STD_LOGIC;--对调信号，高电平对调
??????score_A_H??????:?IN?STD_LOGIC_VECTOR(3?DOWNTO?0);
??????score_A_L??????:?IN?STD_LOGIC_VECTOR(3?DOWNTO?0);
??????score_B_H??????:?IN?STD_LOGIC_VECTOR(3?DOWNTO?0);
??????score_B_L??????:?IN?STD_LOGIC_VECTOR(3?DOWNTO?0);
??????score_A_H_dis??:?OUT?STD_LOGIC_VECTOR(3?DOWNTO?0);
??????score_A_L_dis??:?OUT?STD_LOGIC_VECTOR(3?DOWNTO?0);
??????score_B_H_dis??:?OUT?STD_LOGIC_VECTOR(3?DOWNTO?0);
??????score_B_L_dis??:?OUT?STD_LOGIC_VECTOR(3?DOWNTO?0)
???);
END?change_score;
ARCHITECTURE?behaveral?OF?change_score?IS
BEGIN
???
???PROCESS?(clk,?rst)
???BEGIN
IF?(rst?=?'1')?THEN--复位
?????????score_A_H_dis?<=?"0000";
?????????score_A_L_dis?<=?"0000";
?????????score_B_H_dis?<=?"0000";
?????????score_B_L_dis?<=?"0000";
??????ELSIF?(clk'EVENT?AND?clk?=?'1')?THEN
?????????IF?(change?=?'1')?THEN--高电平对调，将B分数赋值给A，A给B
????????????score_A_H_dis?<=?score_B_H;
????????????score_A_L_dis?<=?score_B_L;
????????????score_B_H_dis?<=?score_A_H;
????????????score_B_L_dis?<=?score_A_L;
ELSE--低电平不对调
????????????score_A_H_dis?<=?score_A_H;
????????????score_A_L_dis?<=?score_A_L;
????????????score_B_H_dis?<=?score_B_H;
????????????score_B_L_dis?<=?score_B_L;
?????????END?IF;
??????END?IF;
???END?PROCESS;
???
???
END?behaveral;
