带左转灯的交通灯控制器设计VHDL代码Quartus仿真

名称：带左转灯的交通灯控制器设计VHDL代码Quartus仿真

软件：Quartus

语言：VHDL

代码功能：

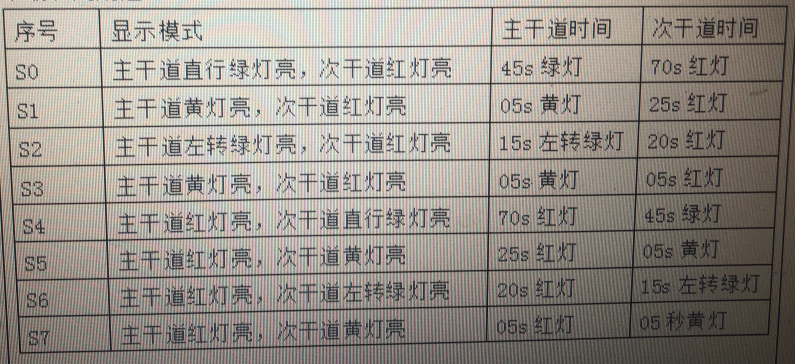

在空间上,右转车辆不与直行车辆冲实,故不考虑对右转车辆的控制情况,在交叉路口中按照实际设定整个循环周期不应太长,否则会导致相位上排队过长影响驾驶员的心理,所以在本次设定中,考虑到直行车辆比左转车辆流量大的情况下,直行绿灯设置45s,左转绿灯设置15s,中间夹杂两次5s的黄灯,所以个最长周期是140s。

FPGA代码Verilog/VHDL代码资源下载：www.hdlcode.com

设计文档：

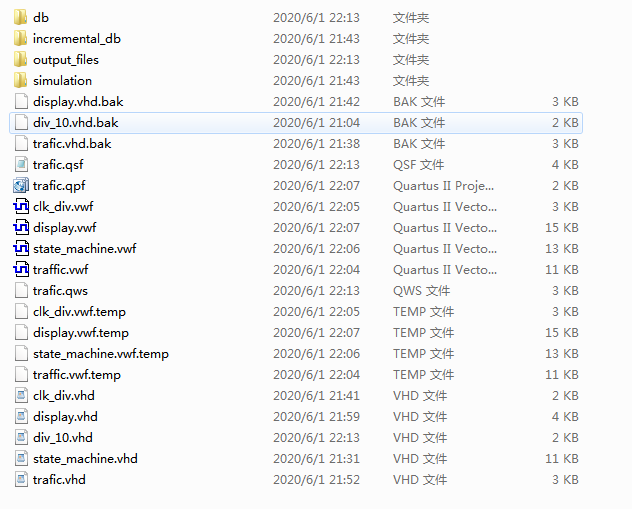

1. 工程文件

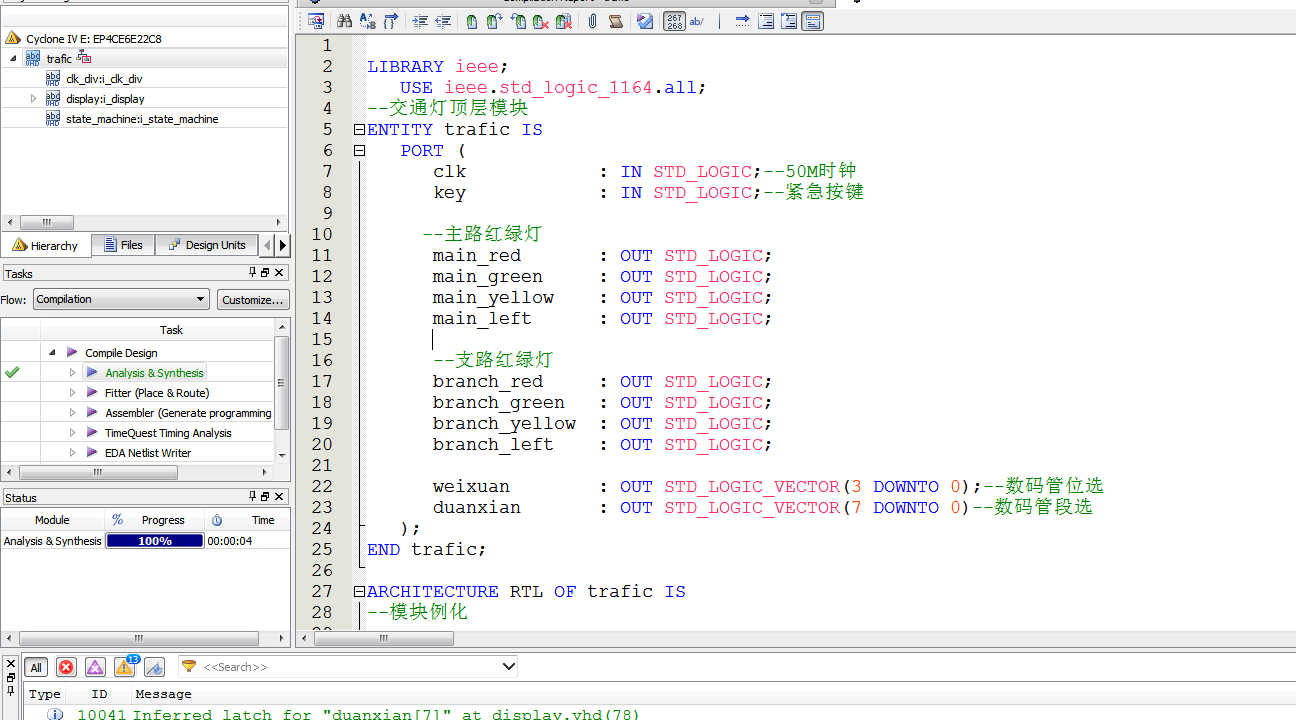

2. 程序文件

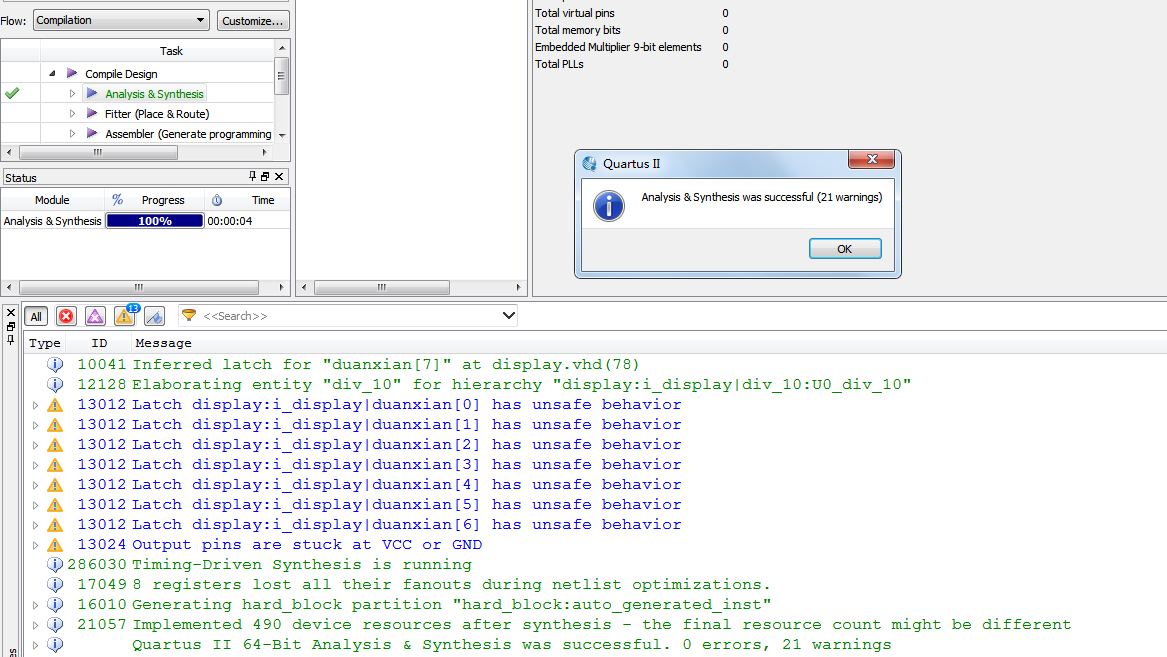

3. 程序编译

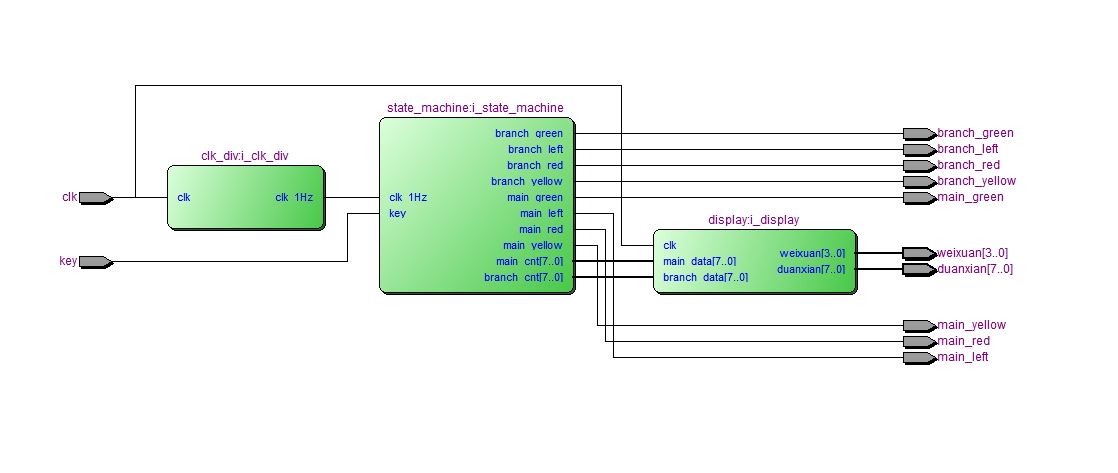

4. RTL图

5. 仿真图

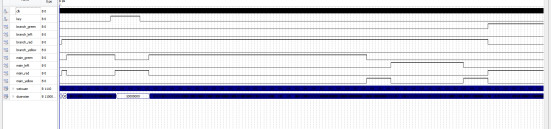

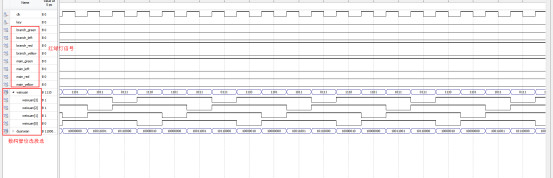

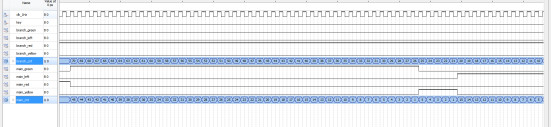

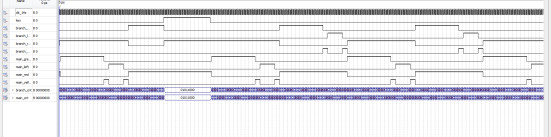

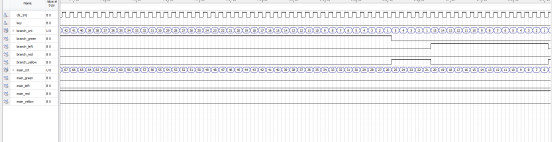

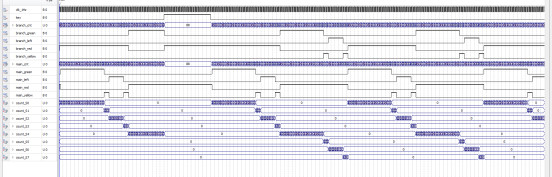

顶层模块仿真

分频模块

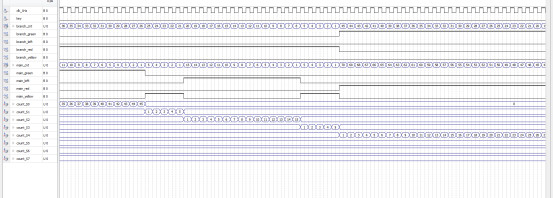

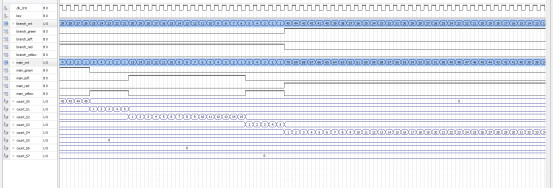

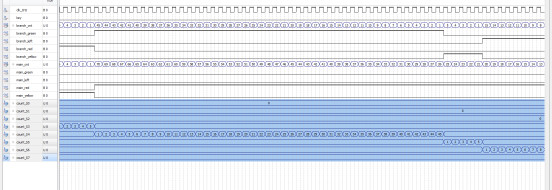

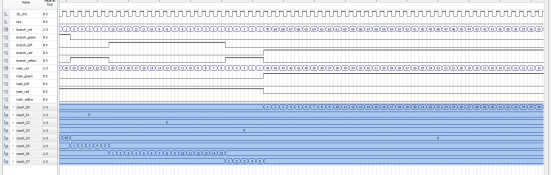

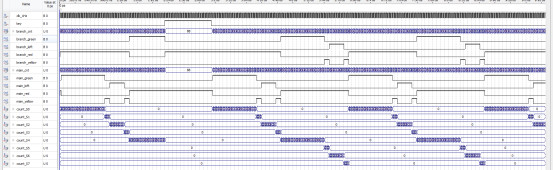

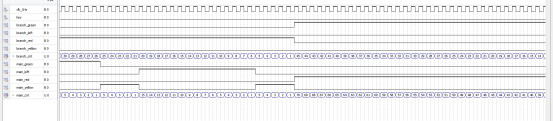

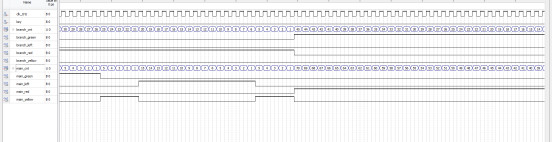

状态机模块

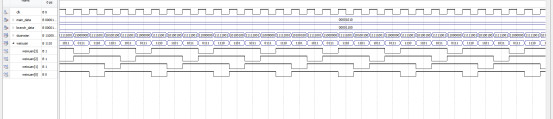

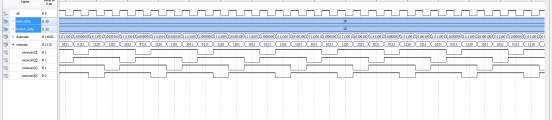

显示模块

部分代码展示:

LIBRARY?ieee;
???USE?ieee.std_logic_1164.all;
--交通灯顶层模块
ENTITY?trafic?IS
???PORT?(
??????clk????????????:?IN?STD_LOGIC;--50M时钟
??????key????????????:?IN?STD_LOGIC;--紧急按键
??--主路红绿灯
??????main_red???????:?OUT?STD_LOGIC;
??????main_green?????:?OUT?STD_LOGIC;
??????main_yellow????:?OUT?STD_LOGIC;
??????main_left??????:?OUT?STD_LOGIC;
??????
--支路红绿灯
??????branch_red?????:?OUT?STD_LOGIC;
??????branch_green???:?OUT?STD_LOGIC;
??????branch_yellow??:?OUT?STD_LOGIC;
??????branch_left????:?OUT?STD_LOGIC;
??????
??????weixuan????????:?OUT?STD_LOGIC_VECTOR(3?DOWNTO?0);--数码管位选
??????duanxian???????:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0)--数码管段选
???);
END?trafic;
ARCHITECTURE?RTL?OF?trafic?IS
--模块例化
--状态机控制模块
???COMPONENT?state_machine?IS
??????PORT?(
?????????clk_1Hz????????:?IN?STD_LOGIC;
?????????key????????????:?IN?STD_LOGIC;
?????????main_red???????:?OUT?STD_LOGIC;
?????????main_green?????:?OUT?STD_LOGIC;
?????????main_yellow????:?OUT?STD_LOGIC;
?????????main_left??????:?OUT?STD_LOGIC;
?????????branch_red?????:?OUT?STD_LOGIC;
?????????branch_green???:?OUT?STD_LOGIC;
?????????branch_yellow??:?OUT?STD_LOGIC;
?????????branch_left????:?OUT?STD_LOGIC;
?????????main_cnt???????:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0);
?????????branch_cnt?????:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0)
??????);
???END?COMPONENT;
???
??--数码管显示模块
???COMPONENT?display?IS
??????PORT?(
?????????clk????????????:?IN?STD_LOGIC;
?????????main_data??????:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0);
?????????branch_data????:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0);
?????????weixuan????????:?OUT?STD_LOGIC_VECTOR(3?DOWNTO?0);
?????????duanxian???????:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0)
??????);
???END?COMPONENT;
???--分频模块
???COMPONENT?clk_div?IS
??????PORT?(
?????????clk????????????:?IN?STD_LOGIC;
?????????clk_1Hz????????:?OUT?STD_LOGIC
??????);
???END?COMPONENT;
???SIGNAL?clk_1Hz?????????????:?STD_LOGIC;
???SIGNAL?main_cnt????????????:?STD_LOGIC_VECTOR(7?DOWNTO?0);
???SIGNAL?branch_cnt??????????:?STD_LOGIC_VECTOR(7?DOWNTO?0);
BEGIN
--分频模块
???i_clk_div?:?clk_div
??????PORT?MAP?(
?????????clk??????=>?clk,
?????????clk_1Hz??=>?clk_1Hz--1Hz
??????);

点击链接获取代码文件：http://www.hdlcode.com/index.php?m=home&c=View&a=index&aid=1005
