基于FPGA的数字电子钟VHDL代码Quartus仿真

名称：基于FPGA的数字电子钟VHDL代码Quartus仿真

软件：Quartus

语言：VHDL

代码功能：

数字电子钟

1)设计一个能显示秒、分、时的24小时数字钟；

2)用数码管显示出时，分，秒，复位显示00:00:00；

3)通过按键可对时，分，秒进行设置。

FPGA代码Verilog/VHDL代码资源下载：www.hdlcode.com

演示视频：

设计文档：

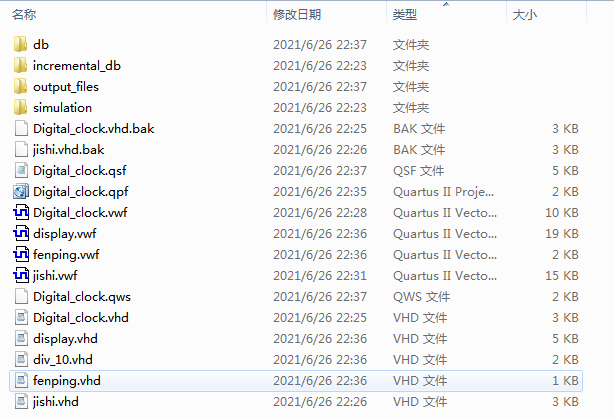

1. 工程文件

2. 程序文件

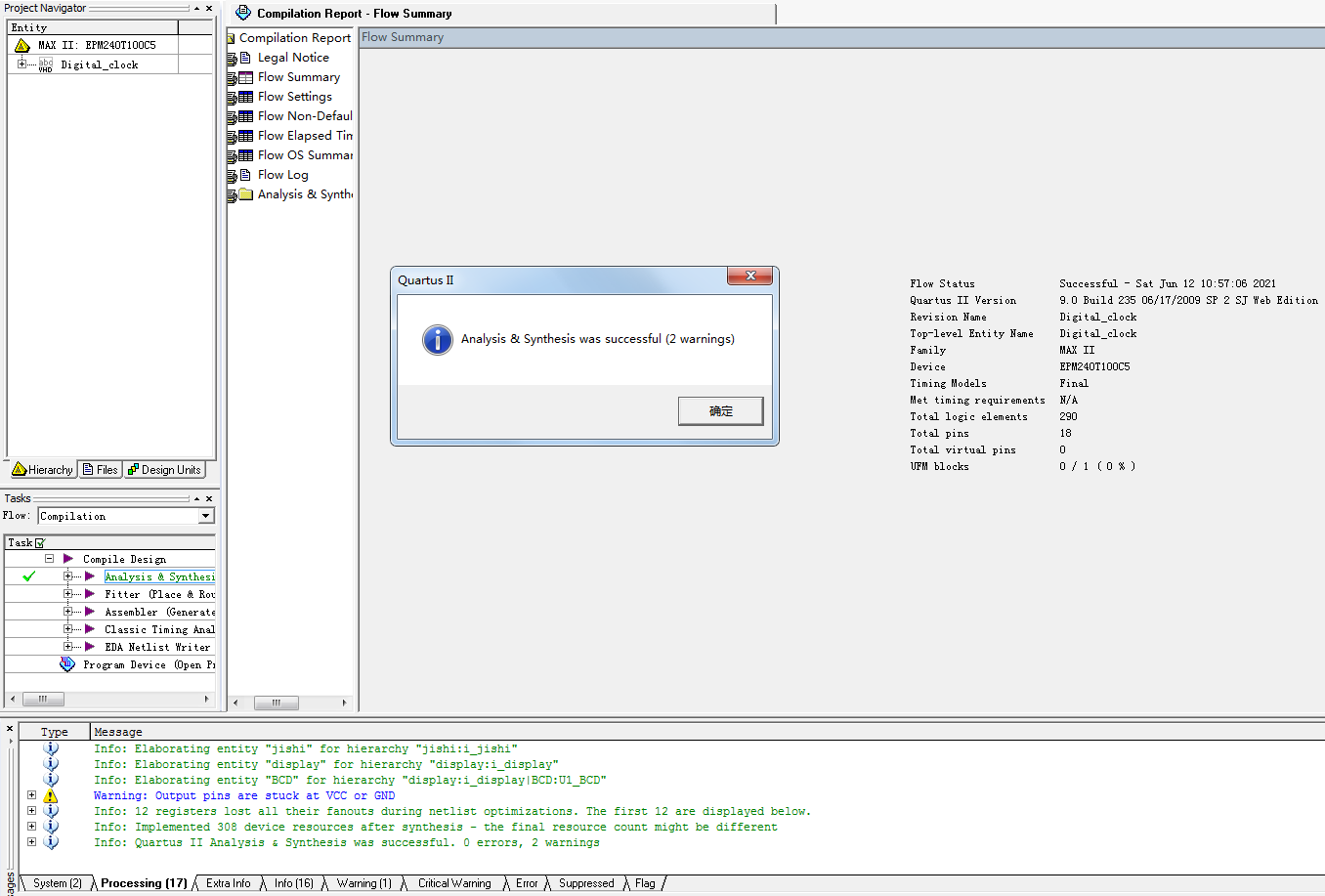

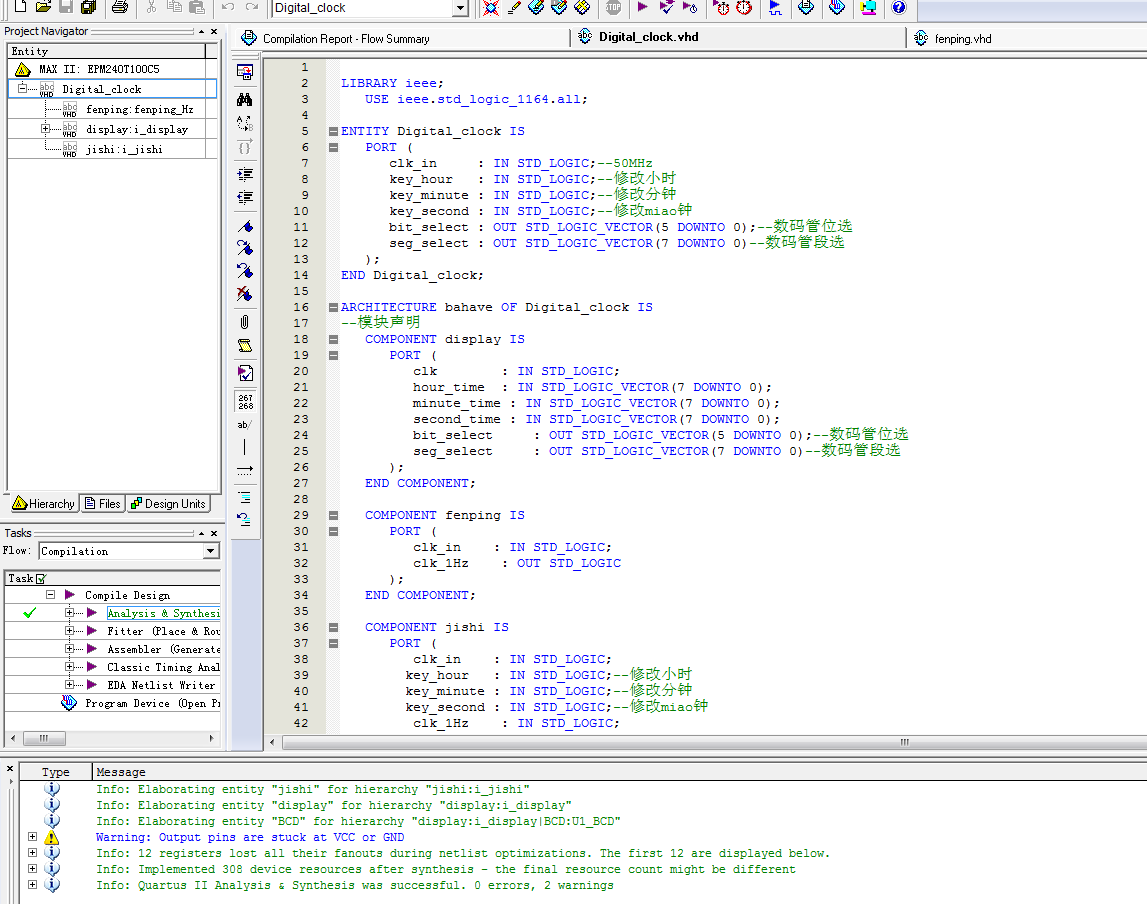

3. 程序编译

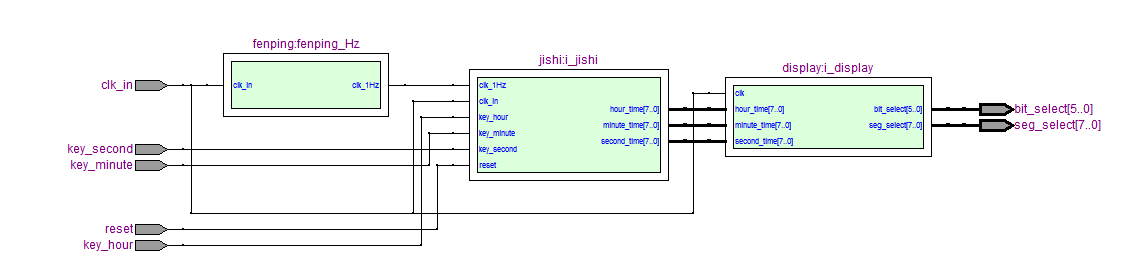

4. RTL图

5. 仿真图

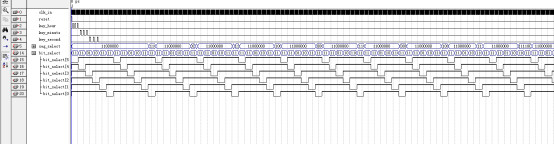

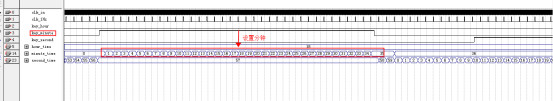

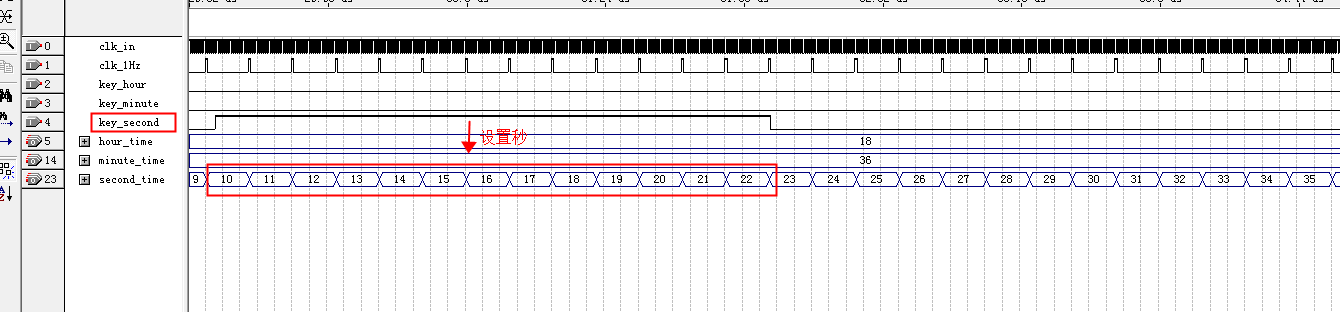

整体仿真图

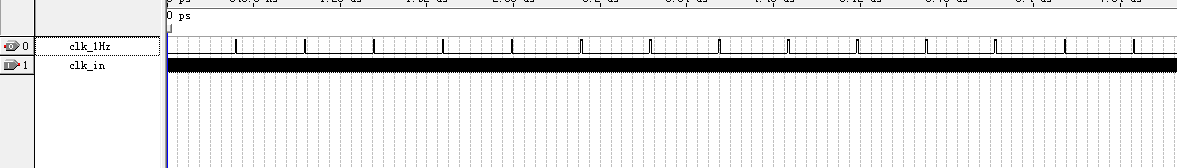

分频模块仿真

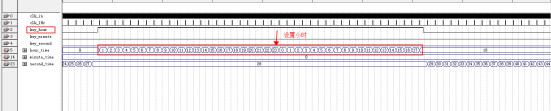

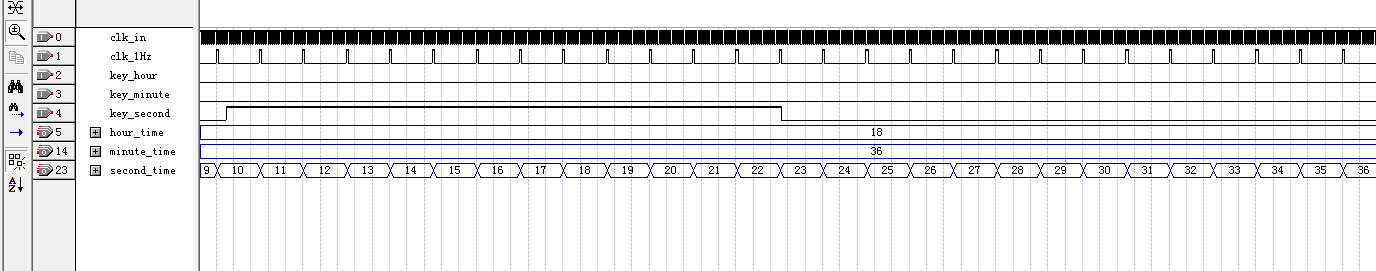

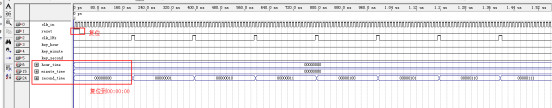

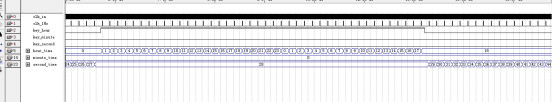

计时模块

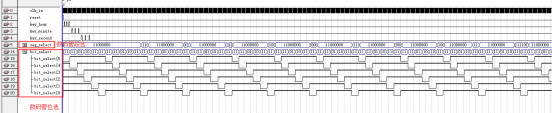

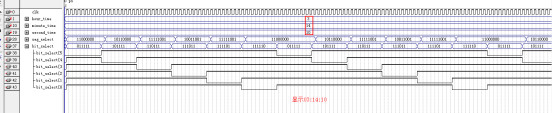

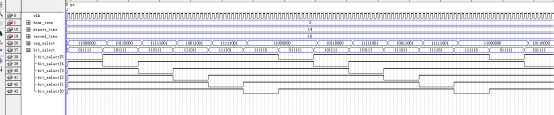

显示模块

部分代码展示:

LIBRARY?ieee;
???USE?ieee.std_logic_1164.all;
ENTITY?Digital_clock?IS
???PORT?(
??????clk_in?????:?IN?STD_LOGIC;--50MHz
??????reset?????:?IN?STD_LOGIC;--reset
??key_hour???:?IN?STD_LOGIC;--修改小时
??key_minute?:?IN?STD_LOGIC;--修改分钟
??key_second?:?IN?STD_LOGIC;--修改miao钟
??????bit_select?:?OUT?STD_LOGIC_VECTOR(5?DOWNTO?0);--数码管位选
??????seg_select?:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0)--数码管段选
???);
END?Digital_clock;
ARCHITECTURE?bahave?OF?Digital_clock?IS
--模块声明
???COMPONENT?display?IS
??????PORT?(
?????????clk????????:?IN?STD_LOGIC;
?????????hour_time??:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0);
?????????minute_time?:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0);
?????????second_time?:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0);
?bit_select?????:?OUT?STD_LOGIC_VECTOR(5?DOWNTO?0);--数码管位选
?seg_select?????:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0)--数码管段选
??????);
???END?COMPONENT;
???COMPONENT?fenping?IS
??????PORT?(
?????????clk_in????:?IN?STD_LOGIC;
?????????clk_1Hz????:?OUT?STD_LOGIC
??????);
???END?COMPONENT;
???
???COMPONENT?jishi?IS
??????PORT?(
?????????clk_in????:?IN?STD_LOGIC;
?????????reset?????:?IN?STD_LOGIC;--reset
key_hour???:?IN?STD_LOGIC;--修改小时
key_minute?:?IN?STD_LOGIC;--修改分钟
key_second?:?IN?STD_LOGIC;--修改miao钟
?????????clk_1Hz????:?IN?STD_LOGIC;
?????????hour_time??:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0);
?????????minute_time?:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0);
?????????second_time?:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0)
??????);
???END?COMPONENT;
???
???SIGNAL?hour_time?????????:?STD_LOGIC_VECTOR(7?DOWNTO?0);
???SIGNAL?minute_time???????:?STD_LOGIC_VECTOR(7?DOWNTO?0);
???SIGNAL?second_time???????:?STD_LOGIC_VECTOR(7?DOWNTO?0);
???SIGNAL?clk_1Hz???????????:?STD_LOGIC;
BEGIN
???--分频到1Hz
???fenping_Hz?:?fenping
??????PORT?MAP?(
?????????clk_in??=>?clk_in,
?????????clk_1Hz??=>?clk_1Hz
??????);
???
???
???--计时模块
???i_jishi?:?jishi
??????PORT?MAP?(
?????????clk_in??????=>?clk_in,
?????????reset???=>reset,
?key_hour=>?key_hour,
?key_minute=>?key_minute,
?key_second?=>?key_second,--修改miao钟
?????????clk_1Hz??????=>?clk_1Hz,
?????????hour_time????=>?hour_time,--时
?????????minute_time??=>?minute_time,--分
?????????second_time??=>?second_time--秒
??????);
???
???--显示模块
???i_display?:?display
??????PORT?MAP?(
?????????clk????????????????=>?clk_in,
?????????hour_time??????????=>?hour_time,
?????????minute_time????????=>?minute_time,
?????????second_time????????=>?second_time,
?bit_select?????=>bit_select,--数码管位选
?seg_select?????=>seg_select--数码管段选
??????);
???
END?bahave;
